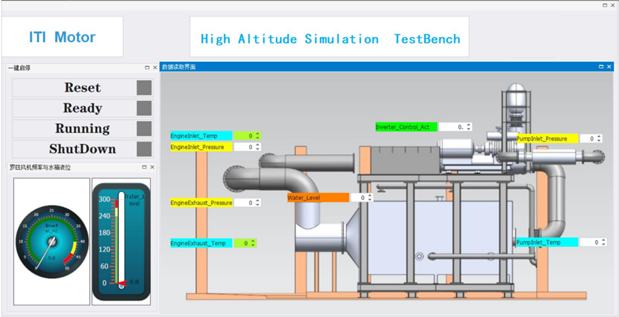

Technical parameters of plateau simulation system (three sets)Engine intake flow: 1500/3500/12000 kg/hCorresponding engine power: 300/560/1800 kW···

Test bench technical parametersRated power: 560kW-2000kWRated torque: 3050N· M-16000N ·mFuel supply: diesel, methanol, natural gasMethanol flow rate: 0-800kg/···

PTO loading equipment (two sets)Carrying capacity :0-35MPaHydraulic tank volume :800L/1500L Maximum flow :250L/min/500L/min Single circulation system,···

Thermal shock test capabilityEngine power: 80kW-530kWEngine type: gasoline, diesel, natural gas engineCommon cold and heat shock: 30℃ -110 ℃ cold an···

Mechanical development test

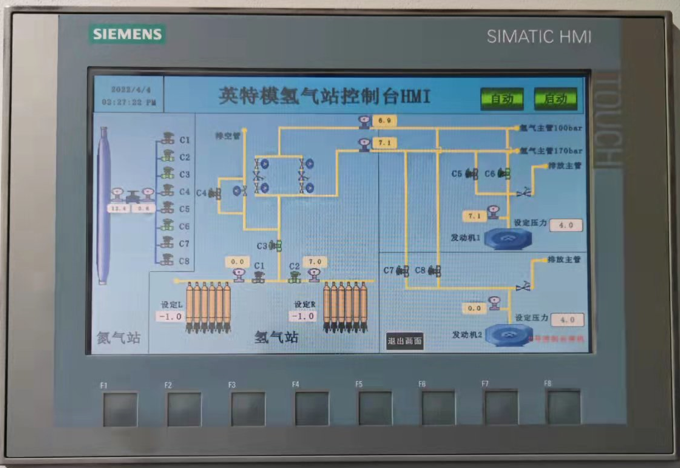

Technical parameterRated power: 560kW/1000kWMaximum speed: 3300rpmHydrogen pressure: 0MPa-20mpa, automatic pressure regulation, accuracy 0.5barHydrogen flo···

Technical parameterRated power: 250kW/560kW/1000kWMaximum speed: 10000rpm/3300rpmHydrogen flow: 0-50kg/h, mass flowHydrogen pressure: 0-20-30MPa, auto···

Test bench technical parametersRated power: 560kW-2000kWRated torque: 3050N· M-16000N ·mFuel supply: diesel, methanol, natural gasMethanol flow rate: 0-8···
