Ammonia gas

Technical parameter

Rated power: 560kW/1000kW

Maximum speed: 3300rpm

Hydrogen pressure: 0MPa-20mpa,

automatic pressure regulation, accuracy 0.5bar

Hydrogen flow rate: 0-35kg/h,

hydrogen temperature: 10-50℃,

accuracy ±0.5℃

Gas supply: 0-200kg/h, 25-80℃,

< 10bar gas phase ammonia

Liquid ammonia supply: 0-200kg/h, 30-50℃,

> 20bar liquid ammonia supply pressure

Air intake air conditioner: temperature 25±2℃,

humidity 50±5%

Environmental air conditioning:

full fresh air explosion-proof environmental

air conditioning (herringbone inclined top)

Emission test: H2 concentration, PM, PN (10nm),

NOx

Project experience advantage

Shutdown inlet purge, exhaust purge,

 ammonia gas line purge

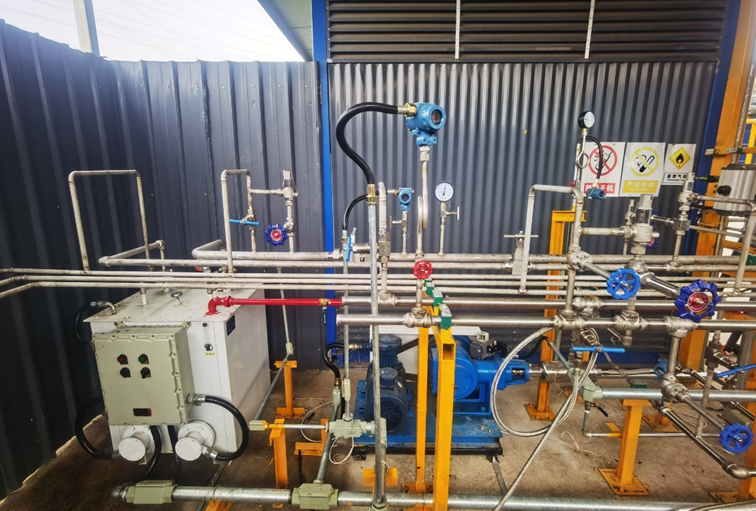

Continuous ammonia and hydrogen supply

system, 24h continuous operation,

automatic ventilation without stopping

Full fresh air system, multiple security,

leak detection and fire protection system

High concentration ammonia concentration

measurement, ammonia tail gas after treatment
